FCS-6300 Full-function Conference System
- Full-function Conference System
FCS-6300 series is equipped with TCP/IP protocol control. It supports voting, interpreting, and other conferencing functions that can meet all needs for conferencing occasions.
- Each Microphone Unit is Equipped with DSP Chip to Further Enhance the Sound Quality
Each microphone unit is equipped with DSP chip; the AGC, PEQ, and sound fields can be individually adjusted to enhance conferencing quality.
- Smartphone/Tablet Management to Easily Realize Smart Control
Offer iOS, Microsoft, and web browser based platforms to do mobile control. It facilitates the setting and editing as well as greatly decreases the labor cost and maintenance.
- Up-to-Date Voice Activation Technique
BXB’s voice activation technique can make microphones detect the frequency of human voice only. The microphone would not be wrongly activated due to the surrounded sounds such as loudspeakers and applause.

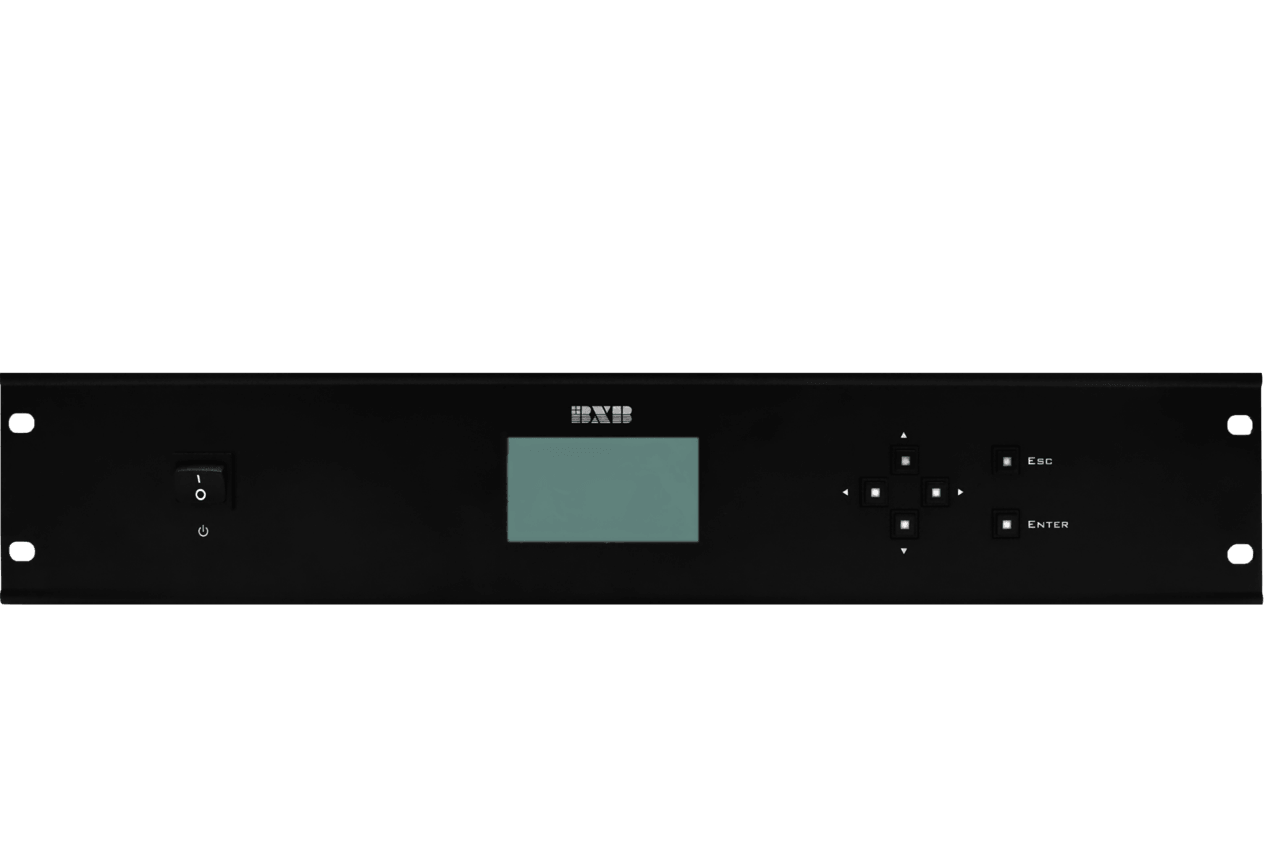

FCS-6350 Conference Main Control Unit
- Equipped with large LCD display (128 x 64 pixels) with Chinese/English languages, which can clearly show the system testing status, the quantity of connected microphone units, the operation modes, and the volume/sensitivity of conference microphones.
- One control unit can connect 50 microphone units. BXB’s extension power supply can be applied to add more. The maximum quantity of connected microphone unit is 1009 sets.
- Equipped with digital coding. Each unit’s ID number and the identity of chairman/delegate can be set by main control unit or graphical software directly.
- Equipped with TCP/IP protocol control via wired or wireless modes by PC or mobile devices.
- Integrated with BXB’s authorized iPhone/iPad APP software to easily realize mobile control.
- Equipped with USB connector to operate with PC for music playback or recording.
- Equipped with 4 sets of RJ45 ports. Each port possesses circuit protection mechanism to make the system safer and more stable.
- Equipped with RS-232 connector to operate with PC and other environmental control equipments.
- Applied with commonly-used Cat-5e cables to ease the maintenance.
UFO-6311 Table-top Chairman Unit
- Hidden speaking button makes the unit’s outlook more elegant and flowing.
- 5 kinds of metal color with 25 color-combinations provide multiple choices for adapting with the room decoration.
- Equipped with DSP chip: sensitivity adjustment for each microphone.
- Applied with commonly-used Cat-5e cable.
- There’s no limitation of chairman unit’s quantity. You can also randomly put the chairman unit with any sequence.
UFO-6312 Table-top Delegate Unit
- Hidden speaking button makes the unit’s outlook more elegant and flowing.
- 5 kinds of metal color with 25 color-combinations provide multiple choices for adapting with the room decoration.
- Equipped with DSP chip: sensitivity adjustment for each microphone.
- Applied with commonly-used Cat-5e cable.
- Microphone auto-off as 10-99 seconds after the speaker finish speaking.
FUN-6313 Table-top Chairman Unit
- Equipped with DSP chip: AGC and sensitivity adjustment for each microphone.
- Equipped with OLED display: clearly show the operation modes. When the voltage of microphone is too low, the microphone would stop its operation and show the recent voltage value on the display. It helps you evaluate system’s condition.
- Equipped with digital coding, rather than DIP switch. Each unit’s ID number and the identity of chairman/delegate can be set by main control unit or graphical software directly.
- The unit is equipped with white/red/green/orange LED indicator light to represent different operation modes: able to speak/speaking/override/FIFO.
- Chairman unit has the highest priority to speak and control delegate microphones as instant OFF, permanent OFF and temporary OFF.
- Applied with commonly-used Cat-5e cable.
- Minimum space occupied: smallest microphone base (115 X 100 mm) to increase the table using space for attendees.
FUN-6314 Table-top Delegate Unit
- Equipped with DSP chip: AGC and sensitivity adjustment for each microphone.
- Equipped with OLED display: clearly show the operation modes. When the voltage of microphone is too low, the microphone would stop its operation and show the recent voltage value on the display. It helps you evaluate system’s condition.
- Equipped with digital coding, rather than DIP switch. Each unit’s ID number and the identity of chairman/delegate can be set by main control unit or graphical software directly.
- The unit is equipped with white/red/green/orange LED indicator light to represent different operation modes: able to speak/speaking/override/FIFO.
- Any delegate unit can be set as vice-chairman identity. Vice-chairman can operate “Chairman Priority for Temporary Speaking” mode. Just press speaking button for 1.5 seconds, the original delegate unit would become mute and all the speaking functions would be terminated. If you let go the speaking button, all the delegate units would recover to the original speaking status.
- Applied with commonly-used Cat-5e cable.
- Minimum space occupied: smallest microphone base (115 X 100 mm) to increase the table using space for attendees.
FCS-6315 Table-top Chairman Unit- with LCD Display
- Equipped with DSP chip: sensitivity adjustment for each microphone.
- Equipped with 2 x 24 digit LCD display to show operation modes and speaking statuses.
- Equipped with built-in 2.5” x 1.5” HI FI speaker. When the microphone is on, the loudspeaker would be auto-off to avoid sound feedback.
- With built-in voting interface with five buttons in the lid. It can operate with BXB’s graphical control software to do voting function.
- Equipped with 2 sets of Ø3.5mm recording plugs. Attendees can connect recording equipment as well as the earphone.
- There’s no limitation of chairman unit’s quantity. You can also randomly put the chairman unit with any sequence.
FCS-6316 Table-top Delegate Unit- with LCD Display
- Equipped with DSP chip: sensitivity adjustment for each microphone.
- Equipped with 2 x 24 digit LCD display to show operation modes and speaking statuses.
- Equipped with built-in 2.5” x 1.5” HI FI speaker. When the microphone is on, the loudspeaker would be auto-off to avoid sound feedback.
- With built-in voting interface with five buttons in the lid. It can operate with BXB’s graphical control software to do voting function.
- Equipped with 2 sets of Ø3.5mm recording plugs. Attendees can connect recording equipment as well as the earphone.
- Microphone auto-off as 10-99 seconds after the speaker finish speaking.
FCS-6321 Flush-mounted Chairman Unit
- Applied with extruded aluminum panel. It can be easily mixed with conferencing table.
- The panel can be customized based on different requirements. Conferencing interfaces such as discussion, voting, interpreting, AC power plug, and RJ45 internet plug can be integrated to the single panel.
- Equipped with DSP chip: AGC and sensitivity adjustment for each microphone.
- Equipped with 2 sets of Ø3.5mm recording plugs. Attendees can connect recording equipment as well as the earphone.
- Applied with commonly-used Cat-5e cable.
- There’s no limitation of chairman unit’s quantity. You can also randomly put the chairman unit with any sequence.
FCS-6322 Flush-mounted Delegate Unit
- Applied with extruded aluminum panel. It can be easily mixed with conferencing table.
- The panel can be customized based on different requirements. Conferencing interfaces such as discussion, voting, interpreting, AC power plug, and RJ45 internet plug can be integrated to the single panel.
- Equipped with DSP chip: AGC and sensitivity adjustment for each microphone.
- Equipped with 2 sets of Ø3.5mm recording plugs. Attendees can connect recording equipment as well as the earphone.
- Applied with commonly-used Cat-5e cable.
- Microphone auto-off as 10-99 seconds after the speaker finish speaking.
FCS-6323 Flush-mounted Chairman Unit- with Voting Function
- Applied with extruded aluminum panel. It can be easily mixed with conferencing table.
- There’s no limitation of chairman unit’s quantity. You can also randomly put the chairman unit with any sequence.
- Equipped with earphone and recording plugs.
- Equipped with chairman priority indicator tone.
- Equipped with 5 voting buttons with LED indicator light. The buttons can operate presence, agree (+), disagree (-), and abstention (0)/ operate with number: 1-5 (multiple-choice voting).
NEW
FCS-6326-43 Multimedia Conference Lifting Microphone
- Widely used for paperless meeting, lecture & training rooms, multimedia classrooms, high-end offices, hotels, and more.
- All-in-one flush-mounted design integrating touch screen and gooseneck microphone, no exposed cable and highly space-saving.
- The screen and microphone can be lifted individually or concurrently. Via central control system, the microphone can be lifted with single, grouped, or all mode. The gooseneck microphone is equipped with automatic straightening function. When MIC bending, it will be automatically straightening as the machine is off. It won’t be damaged.
- Equipped HDMI, VGA, and USB ports for laptop, tablet, smartphone, USB flash driver, and other devices, easily realizing free screen sharing.
- Supports RS-485/422 protocol for remote central control.
- The screen view angle is adjustable (0-45°), offering the most ideal visual angle to users.
- Equipped with power saving mode by cutting the electricity off automatically after lifting down, greatly decreasing the power consumption.
FCS-6331 Microphone Unit Interface
- Should be adapted with WM-H1 hand-held microphone.
- Equipped with 2 sets of RJ45 plugs to operate parallel connection. It supports hot-plugging. Just wait within 2 seconds after plugging in, the microphone can be used as normal. You can add or take out microphones any time.
- Installation: put on the table or fix in the arm of armchair.
- Equipped with Ø3.5mm recording plugs. Attendees can connect recording equipment directly.
- The panel is equipped with red/green/orange LED indicator light to represent different operation modes (chairman/override/FIFO).
- Equipped with DSP chip: AGC and sensitivity adjustment for each microphone.
WM-H1 Hand-held Conference Microphone
- Shield inside of the capsule with noise-interference device.
- Mute-switch of ON/ OFF speaking button.
- With 2.2M flexible spiral cable, easy for storage.
- Quick connection with microphone unit interface.
- Equipped with digital coding, rather than DIP switch. Each unit’s ID number and the identity of chairman/delegate can be set by main control unit or graphical software directly.
FCS-6341 Voting Selector
- For good-looking and durability, the unit is designed with flush-mounted type and extruded aluminum panel.
- Equipped with 5 voting buttons with LED indicator light. The buttons can operate presence, agree (+), disagree (-), and abstention (0)/ operate with number: 1-5 (multiple-choice voting).
FCS-6370 Graphical Control Software
- Control the operation modes, microphone ON/OFF, microphone ID number setting, camera preset setting, voting, and audio output/input volume control.
- 4 kinds of software version: WEB, Windows, iPad, and iPhone.
- Support advanced voting with quick setting.
- Windows version of software provides multi-language interface.
GS-1002PV2 8Port POE+Gigabit Switch
- Provide & manage the power of PTZ cameras, IP phones, 11ac wireless AP, IP surveillance, and other powered devices, offering a quick and cost-effective POE network solution for enterprises, hotels, education, and smart building.
- 8 sets of 10/100/1000 Mbps RJ45 copper ports featuring 30W(max.) power for each POE port, offering sufficient power for business applications.
- Complies with IEEE 802.3at POE, end-span PSE. Remote power feeding up to 100M in standard mode.
- Supports SFP auto-detection and dual speed. The distance can be extended from 550M to 2KM (multi-mode fiber)and up to 10/20/30/40/50/70/120KM (single-mode/WDM fiber), easily realizing ultra-long distance transmission.
- POE management via Web-based interface: remotely check and control POE power budget, POE port function, power feeding priority, POE schedule, per POE port power limitation, and so on.
- Robust QoS & DSCP features: empowering the enterprises to take full advantage of the limited network resources.
- Supports DHCP snooping, STP BPDU, and ARP inspection: prevents from attack and constructs highly-secured network.
Paperless Flush-mounted All-in-One Panel (Customized)
- The flush-mounted panel integrates video inputs (HDMI/VGA), functional ports (AC power, USB, LAN), and discussion function. The all-in-one design keeps the table tidy and increases the using space for users.
- Just connect to the data source (laptop/smartphone) and then click the screen projection button, your data (slide, video, image) would be synchronously transmitted to the main display (projector, LED monitor, electronic whiteboard) and your conference microphone would be turned on automatically. All the attendees would clearly read the materials. No paper needed; environmental friendliness realized.
- Simple to switch to the next presenter’s screen. You don’t need to plug out/re-manage cables or wait for video switch, greatly enhancing the meeting efficiency.
- Asynchronous browsing: when the speaker shares the screen, any of the other attendees can choose asynchronous browsing, tracking or not tracking the speaker’s screen. The video signals can be interconnected.
WM-43/48/56 C1HT Gooseneck Microphone
WM-43/48 C1ST Gooseneck Microphone (Super Flexible-tube)
WM-70 C2HT Gooseneck Microphone
- Cardioid feature: only receive the front speaker’s voice and avoid taking the surrounding noises such as loudspeakersand other attendees’ discussion.
- Length: 32/43/48/56/70 (cm). Adaptable with different meeting environments.
- Able to avoid the interference of electromagnetic wave even though its distance with 3G and 4G cell phone is just within 10cm.
- Equipped with shield and flexible gooseneck tube, which is easy to be positioned. Even bending it normally, it would not make any noise.
WM-43/48/56 D1HT Gooseneck Microphone
WM-32/43/48 D1ST Gooseneck Microphone (Super Flexible-tube)
- Cardioid feature: only receive the front speaker’s voice and avoid taking the surrounding noises such as loudspeakersand other attendees’ discussion.
- Length: 32/43/48/56 (cm). Adaptable with different meeting environments.
- Able to avoid the interference of electromagnetic wave even though its distance with 3G and 4G cell phone is just within 10cm.
- Equipped with shield and flexible gooseneck tube, which is easy to be positioned. Even bending it normally, it would not make any noise.
WM-32/43/48/56 D1R Gooseneck Microphone
- This type is specially used for FUN-6313/6314.
- Cardioid feature: only receive the front speaker’s voice and avoid taking the surrounding noises such as loudspeakersand other attendees’ discussion.
- Length: 32/43/48/56 (cm). Adaptable with different meeting environments.
- Able to avoid the interference of electromagnetic wave even though its distance with 3G and 4G cell phone is just within 10cm.
- Equipped with shield and flexible gooseneck tube, which is easy to be positioned. Even bending it normally, it would not make any noise.
EPS-C083-C Extension Power Supply (RJ45 to RJ45)
- Equipped with five RJ45 ports: output x 4; input x 1 for connection with conference units.
- Enable to supply up to 50 microphone units (Max. 20 units in a single output).
- Works with BXB UFO-2000 and FCS-6300 conference system series.
- Protection: short circuit / overload / over voltage.
- PWM control and regulated.
- Built-in active PFC function.
SW-004 RJ45 Distributor
- 4 ports of RJ45 connectors.
- Two screw holes for fixing on the table.
- Effectively decrease the length of using cables and increase the cabling flexibility.
